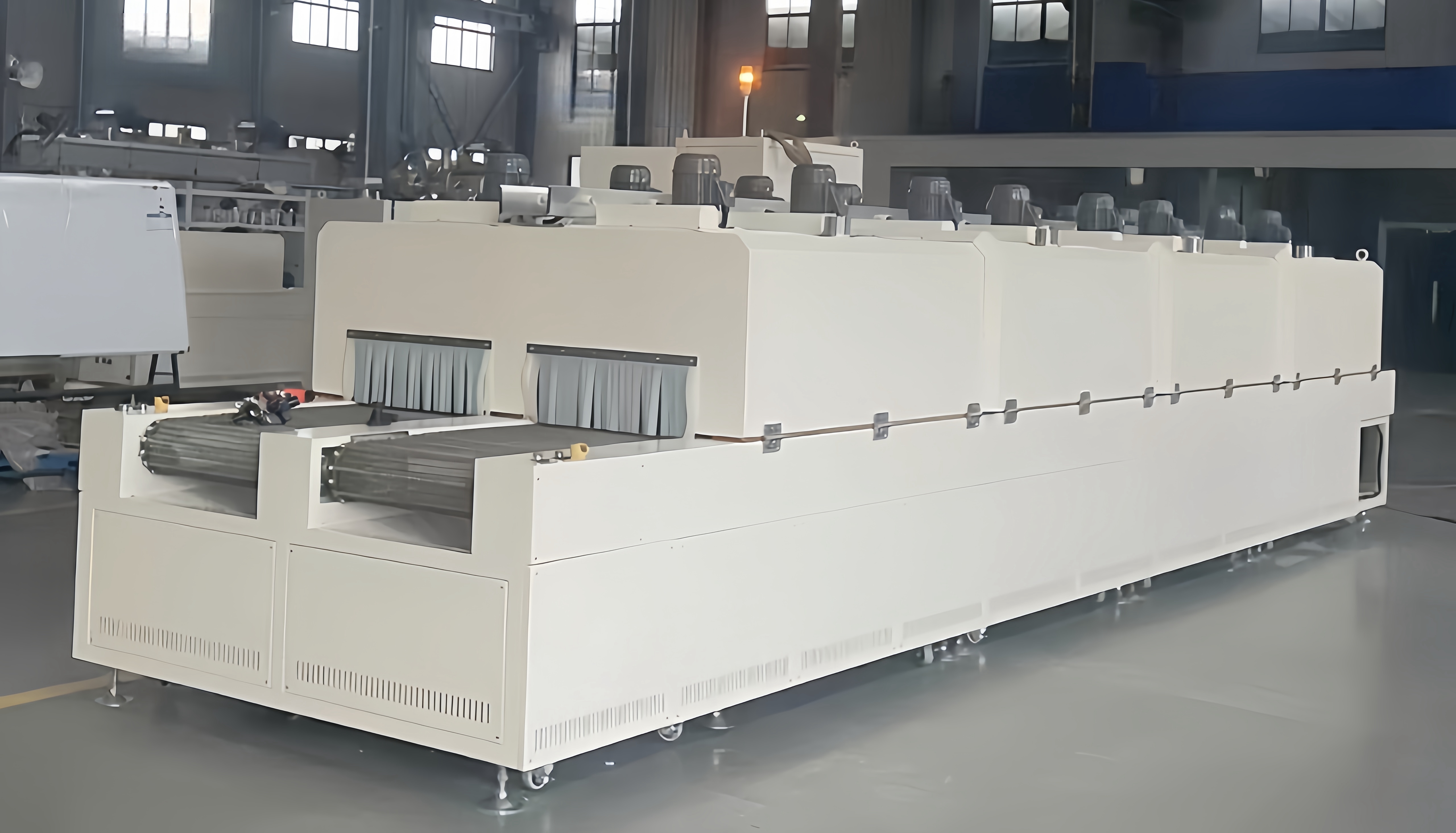

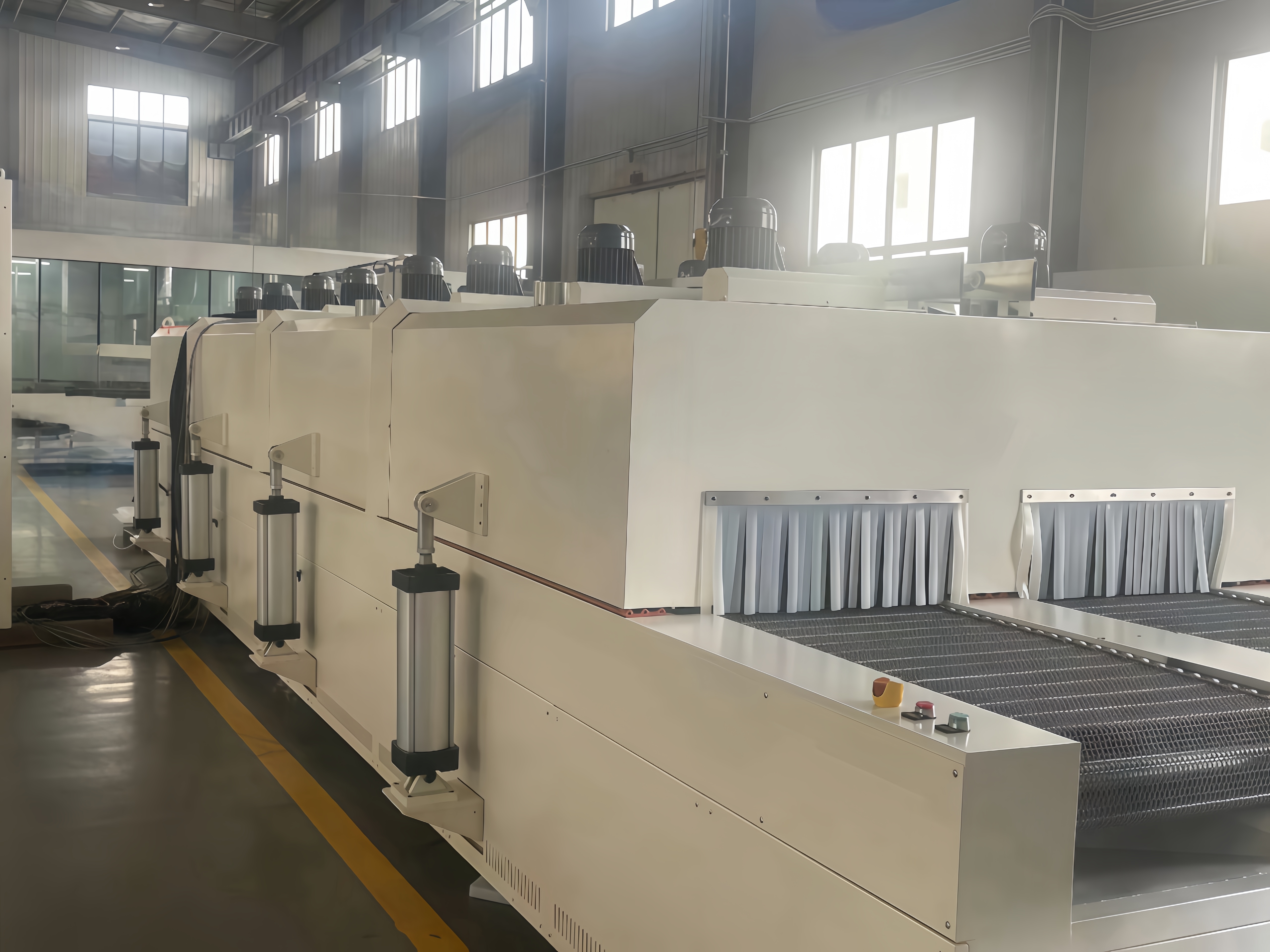

Main Factors:

Material: cold plate for outer shell, with painting; stainless steel 304 for inner chamber, full welded;

Heating Source: Hot Air recirculation Heating, 5 sections, each section has two zones, independently control

Conveyor: high-temperature roller conveyor

Exhausting fans: each section has exhausting fans, with convertor, fan speed adjustable.

Contolling system: Seimens PLC & HMI, Delta Thermostat. Automatic movement with robot.

Other Information:

Temperature Control and Uniformity:

The oven must offer precise temperature control across its entire chamber to ensure uniform curing, drying, or molding of the bump covers.

Digital controllers with temperature set points, alarms, and logging functionality can help maintain the required curing temperatures (often ranging from 100°C to 200°C or more, depending on the material).

The temperature needs to be consistent throughout the oven to ensure that every part receives the same treatment for consistent quality.

Multi-Zone Heating:

Some industrial ovens used in bump cover production have multiple heating zones (top, bottom, or front, middle, rear zones), allowing for independent temperature control. This helps in fine-tuning the heating process to suit the specific material requirements.

This feature helps avoid overheating or underheating parts of the bump cover, which can lead to defects such as uneven curing, warping, or incomplete curing.

Hot Air Convection

Convection ovens use fans to circulate hot air, ensuring even heat distribution throughout the chamber. This is particularly useful for curing rubber or plastic materials.

Infrared heating can be used to target specific areas, providing quicker heat-up times and more efficient energy usage, especially for materials that are sensitive to high temperatures.

Humidity Control:

Some bump cover materials (especially certain types of rubber or plastic) may require controlled humidity levels for optimal curing or drying. Humidity control systems can be integrated into the oven to prevent issues like cracking or uneven curing that can occur due to low or high humidity levels.

Automatic Conveyor Systems:

Many industrial ovens used for bump cover production incorporate automatic conveyor belts to move bump covers through different temperature zones or stages of the production process. This automation helps maintain consistent processing times and improves throughput.

The conveyor can be designed to move parts at a controlled rate to ensure they remain within the ideal temperature window for curing or drying.

Curing and Drying Chambers:

Depending on the material of the bump covers, the oven may be designed with specific curing or drying chambers. For example, rubber bump covers require a curing process (vulcanization) to achieve the necessary elasticity and strength, which requires a precise balance of heat and time.

Temperature-controlled curing zones can be tailored to specific needs, ensuring that the bump covers cure thoroughly without overheating or under curing.

High-Temperature Resistance Materials:

Since bump covers can be made from heat-resistant materials like rubber, silicone, or certain plastics, the oven must be constructed using materials that can withstand the high temperatures and harsh conditions of the production process. These materials often include stainless steel, ceramic insulation, and other heat-resistant components.

Energy Efficiency:

Insulation is a critical aspect of energy efficiency in these ovens. Proper insulation prevents heat loss, reduces energy consumption, and helps maintain consistent temperatures throughout the oven.

Some ovens are equipped with recuperators or heat exchangers to recycle waste heat, improving energy efficiency.

Airflow and Ventilation:

Proper airflow within the oven is necessary to avoid hot or cold spots, and to ensure the even distribution of temperature throughout the chamber. Fan systems that circulate air are often used in conjunction with heating elements to achieve uniform heating.

Additionally, exhaust ventilation may be necessary to vent out volatile compounds or fumes released during the curing or drying process.

Safety Features:

Given that bump cover production may involve high temperatures and potential chemical fumes, the oven should include safety mechanisms such as over-temperature protection, automatic shutoffs, and fume extraction systems.

Emergency stop buttons and safety interlocks prevent accidents in case of equipment failure or operator error.
