Main Feature

1. Material: cold plate for outer shell, painting; 304 stainless steel;
2. Insolution: high quality safe insolution material, to keep the outside temperature of oven no more than room temperature +10℃;
3. Transportation: chain conveyor with stopper, + tray;
4. 3sections, two heating zones, one cooling zone.
5. Controll system: Seimens PLC + HMI, Delta thermostat, also could upload date to MES.
6. Equipped with chiller

More information

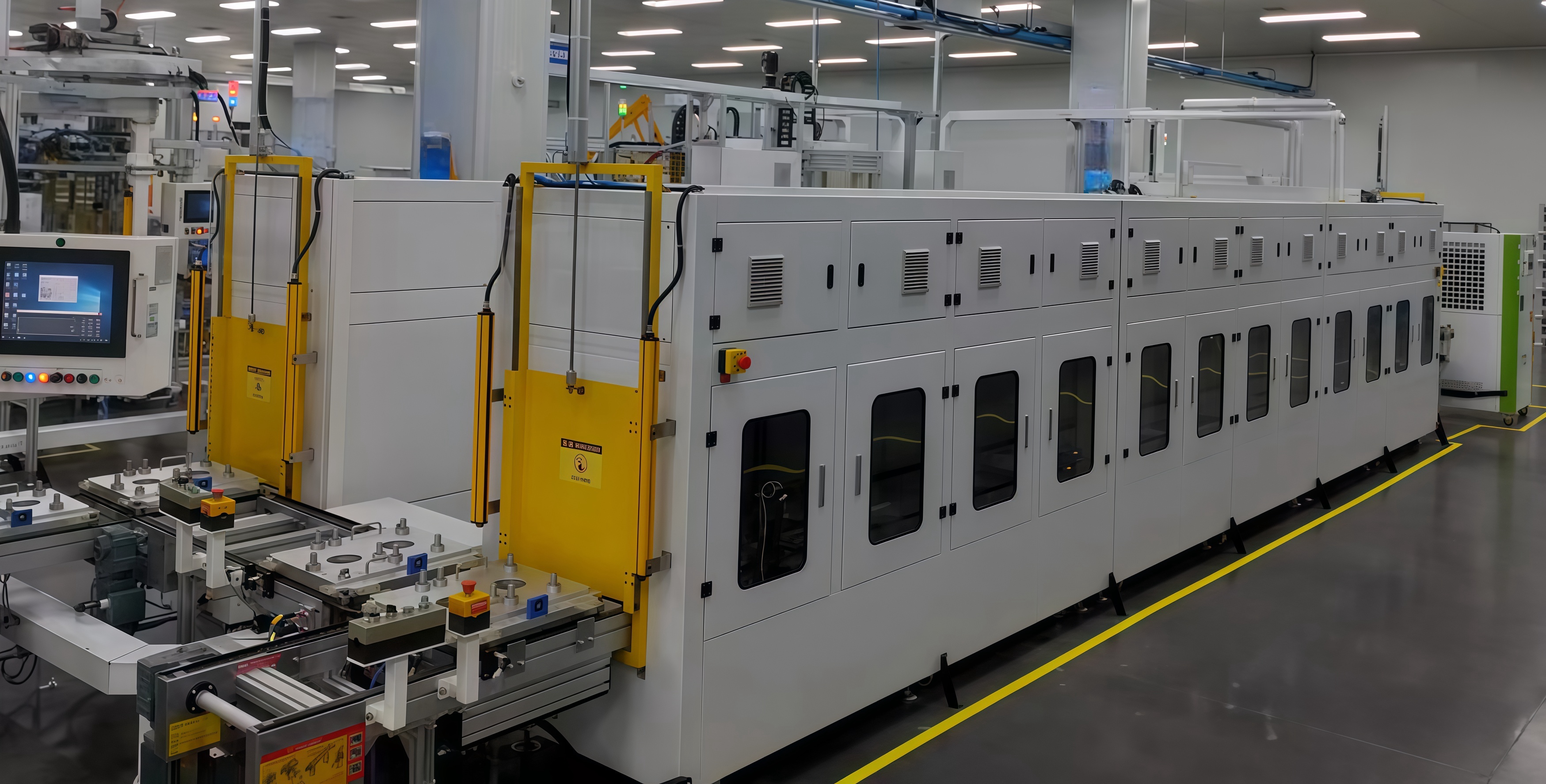

The occupied space of the line is around L7900*W1000*H1640mm.

Whole line cycle time is 120s, the heating zones are available for 15 rotors, continuously heating for 30min, cooling zone is available for 10 rotors, 20min. With 5HP chiller to cool the rotor down faster.
